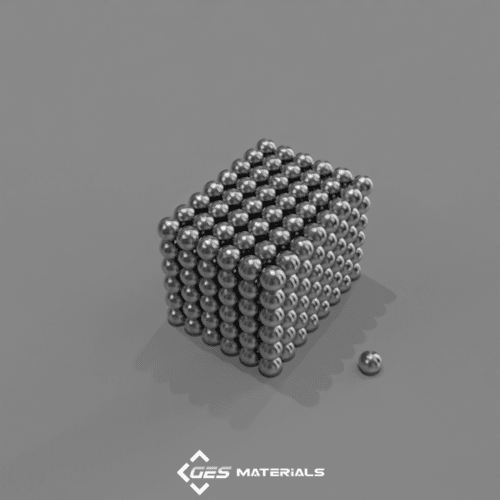

3/16 ” dia Sphere Magnets | S3 Magnet

Categories ,
3/16 ” dia Sphere Magnets | S3 Magnet
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 3/16″ diameter
  • Tolerances: ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: NiCuNi (Nickel)
  • Magnetization Direction: Axially Magnetized (Poles at 2 points, 180° opposite one another)
  • Weight: 0.015 oz (0.42 g)
  • Pull Force, Case 1: 0.91 lbs
  • Pull Force, Case 2: 1.10 lbs
  • Surface Field: 8815 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These magnets are spherical with a diameter of 3/16 inch (approximately 4.76 mm). The north and south poles are located at opposite ends of the sphere, ensuring a stable magnetic field distribution.
