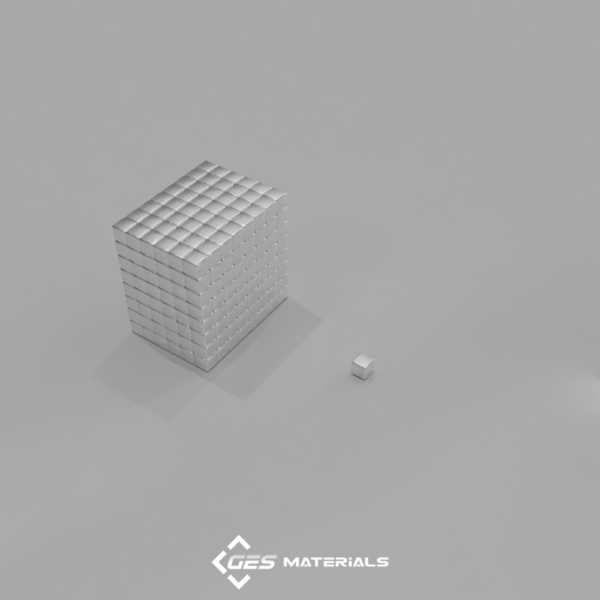

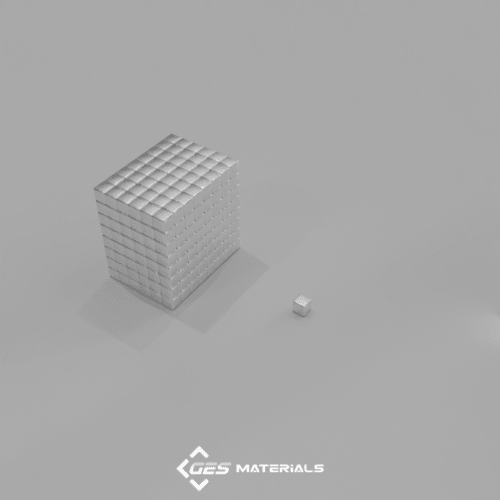

1/16″ x 1/16″ x 1/16″ Thick Block Magnets | B111 Magnets

Categories Neodymium Block Magnets, Neodymium Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Item Number	GES-B111
Material	NdFeB
Grade	N42
Dimensions	1/16" x 1/16" x 1/16" thick
Tolerance	±0.004"(±0.1mm)
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Thru Thickness
Pull Force	0.14 lbs

Description:

Dimensions: 1/16″ x 1/16″ x 1/16″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.001 oz. (0.0283 g)
Pull Force, Case 1: 0.14 lbs
Pull Force, Case 2: 0.20 lbs
Surface Field: 5754 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These very small cubes are often used with Hall Effect sensors. The B111 has an incredible force-to-weight ratio. Just one of these small cubes will hold a standard 8.5″ x 11″ sheet of paper to a refrigerator.
