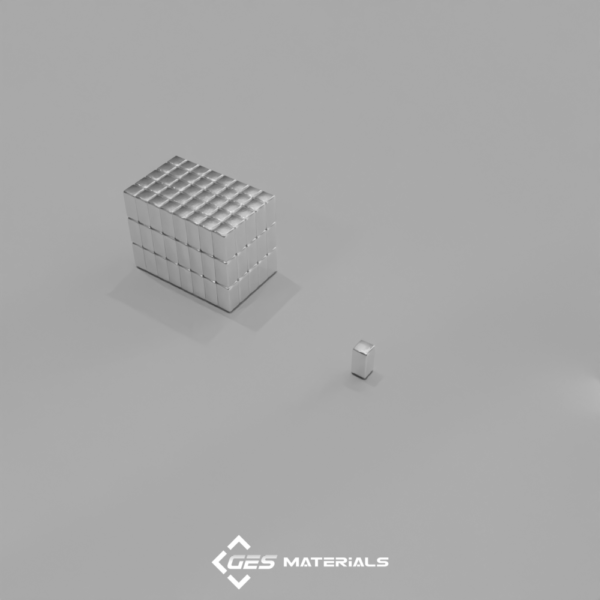

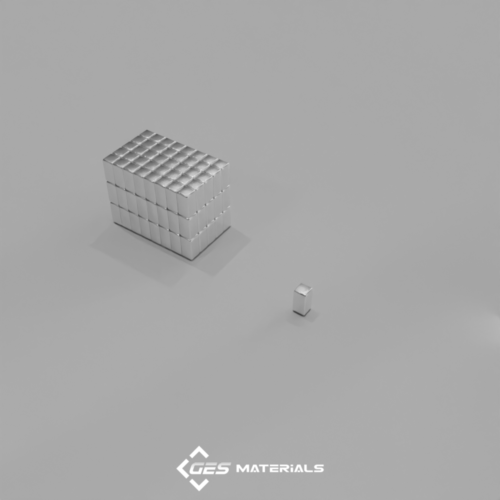

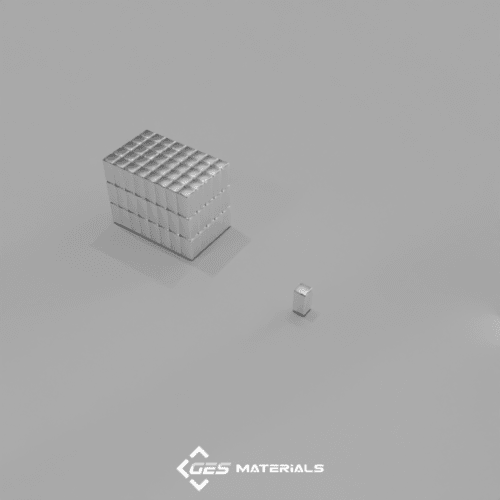

1/16 x 1/16 x 1/8 inch Thick Block Magnets | B112 Magnets

Categories Neodymium Block Magnets, Neodymium Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Item Number	GES-B112
Material	NdFeB
Grade	N42
Dimensions	1/16" x 1/16" x 1/8" thick
Tolerance	±0.004"(±0.1mm)
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Thru Thickness
Pull Force	0.19 lbs

Description:

Dimensions: 1/16″ x 1/16″ x 1/8″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.00212 oz. (0.060 g)
Pull Force, Case 1: 0.19 lbs
Pull Force, Case 2: 0.22 lbs
Surface Field: 6353 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These very small blocks are magnetized through the 1/8″ thickness. The poles are located on the small 1/16″ x 1/16″ faces. Just one of these small blocks will hold a standard 8.5″ x 11″ sheet of paper to a refrigerator.
