1/16 x 1/16 x 1/4 inch thick Block Magnets | B114 Magnet

Categories Neodymium Block Magnets, Neodymium Magnets

Additional information

Item Number	GES-B114
Material	NdFeB
Grade	N42
Dimensions	1/16" x 1/16" x 1/4" thick
Tolerance	±0.004"(±0.1mm)
Plating/Coating	Ni-Cu-Ni (Nickel)
Magnetization Direction	Thru Thickness
Pull Force	0.24 lbs

Description:

Dimensions: 1/16″ x 1/16″ x 1/4″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.00423 oz. (0.12 g)
Pull Force, Case 1: 0.24 lbs
Pull Force, Case 2: 0.25 lbs
Surface Field: 6535 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

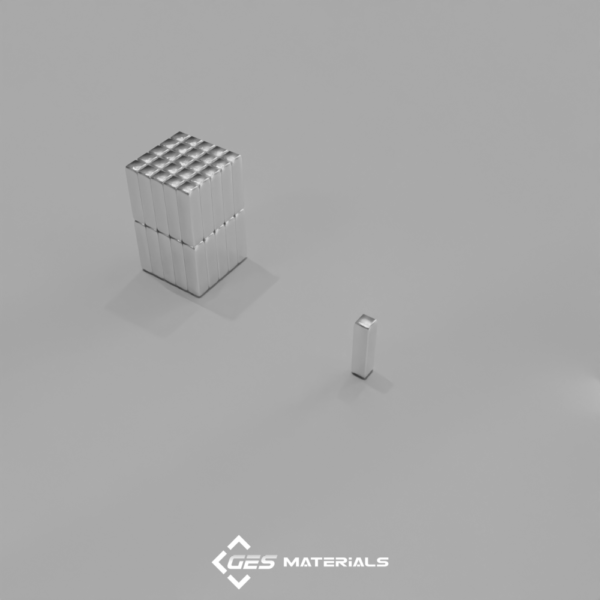

These tiny blocks are magnetized through the 1/4″ thickness. The poles are located on the small 1/16″ x 1/16″ faces. Just one of these small blocks will hold a standard 8.5″ x 11″ sheet of paper to a refrigerator.
