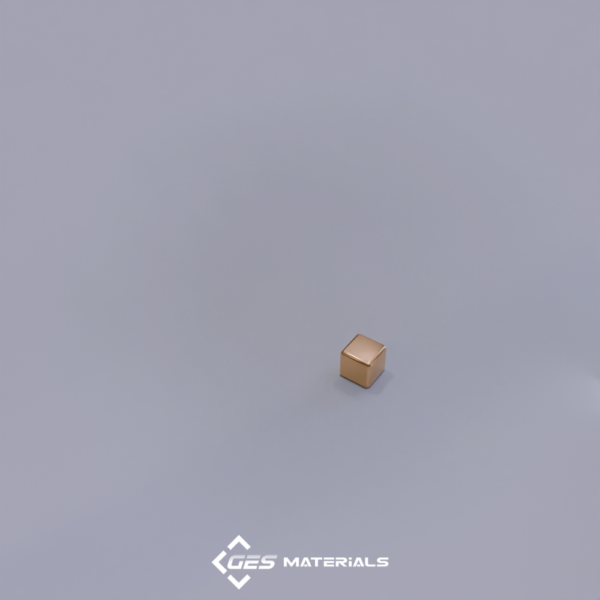

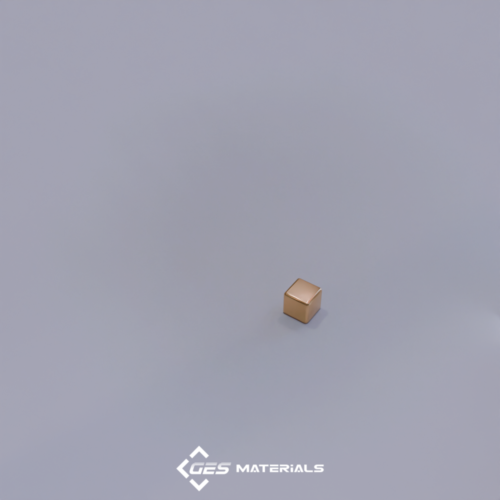

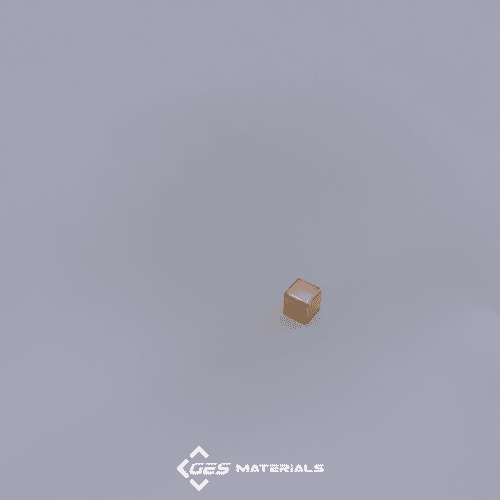

1/8 x 1/8 x 1/8 inch thick Block Magnets | B222G-N52 Magnet

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/8 x 1/8 x 1/8 inch thick Block Magnets | B222G-N52 Magnet

Categories Neodymium Block Magnets, Neodymium Magnets

Additional information

Description:

Dimensions: 1/8″ x 1/8″ x 1/8″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni-Au (Gold)
Magnetization Direction: Thru Thickness
Weight: 0.00847 oz. (0.240 g)
Pull Force, Case 1: 1.06 lbs
Pull Force, Case 2: 1.42 lbs
Surface Field: 6451 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

These 1/8″ cubes can be used for a wide range of applications. They can be used as neat refrigerator or bulletin board magnets. Their N52 strength makes them a great choice for levitation experiments.
