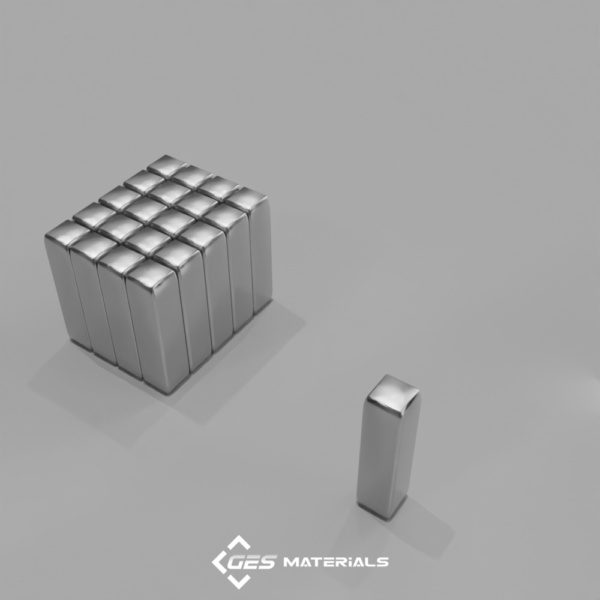

1/8 x 1/8 x 1/2 inch thick Block Magnets | B228 Magnet

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/8 x 1/8 x 1/2 inch thick Block Magnets | B228 Magnet

Categories Neodymium Block Magnets, Neodymium Magnets

Additional information

Description:

Dimensions: 1/8″ x 1/8″ x 1/2″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.034 oz. (0.96 g)
Pull Force, Case 1: 1.19 lbs
Pull Force, Case 2: 1.21 lbs
Surface Field: 6535 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These blocks are magnetized through the 1/2″ length so the poles are on the small 1/8″ x 1/8″ ends. They are like a “square cylinder” and are useful for a wide array of applications.
