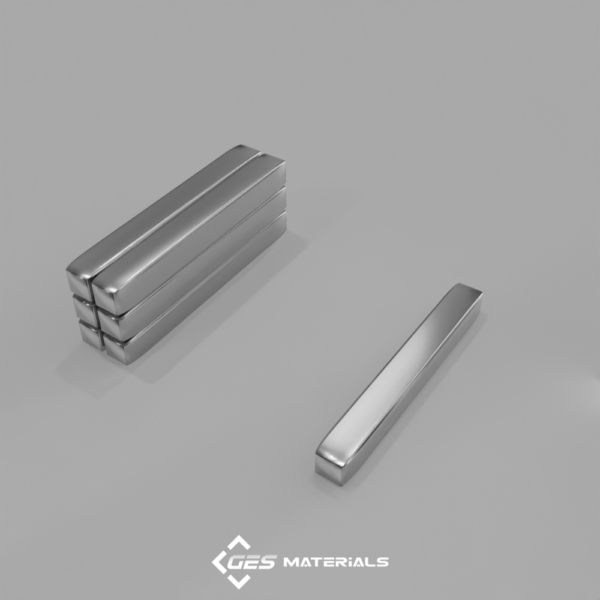

1/8 x 1/8 x 1 inch thick Block Magnets | B22X0 Magnet

Categories , ,
1/8 x 1/8 x 1 inch thick Block Magnets | B22X0 Magnet
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 1/8″ x 1/8″ x 1″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.068 oz. (1.92 g)
  • Pull Force, Case 1: 1.23 lbs
  • Pull Force, Case 2: 1.23 lbs
  • Surface Field: 6584 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These small blocks are magnetized through the 1″ thickness.  The poles are on the small 1/8″ x 1/8″ faces.  Easy to grab, but still provides a strong hold.
