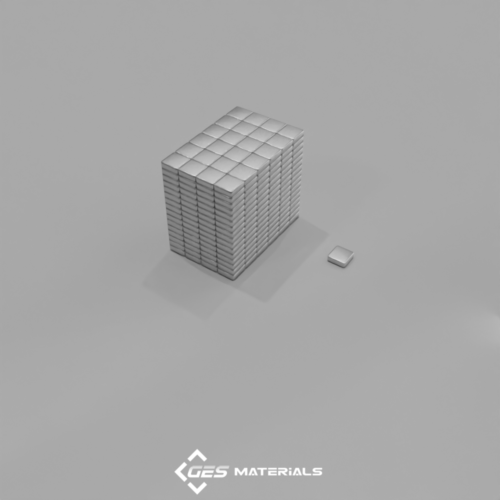

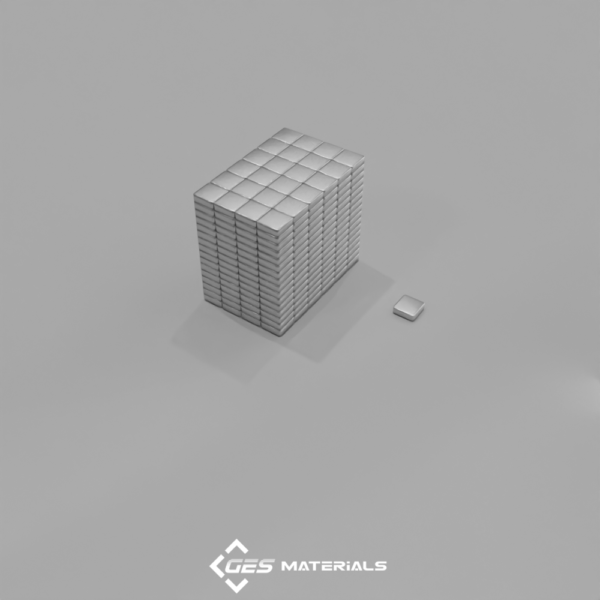

3/16 x 3/16 x 1/16 Inch Block Magnet | B331 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/16 x 3/16 x 1/16 Inch Block Magnet | B331 N42 Magnets

Categories Neodymium Block Magnets, Neodymium Magnets, Permanent Magnets

Additional information

Description:

Dimensions: 3/16″ x 3/16″ x 1/16″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.00953 oz. (0.270 g)
Pull Force, Case 1: 0.92 lbs
Pull Force, Case 2: 2.57 lbs
Surface Field: 3387 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These small block magnets are strong, handy, and great to have around for everyday use.
