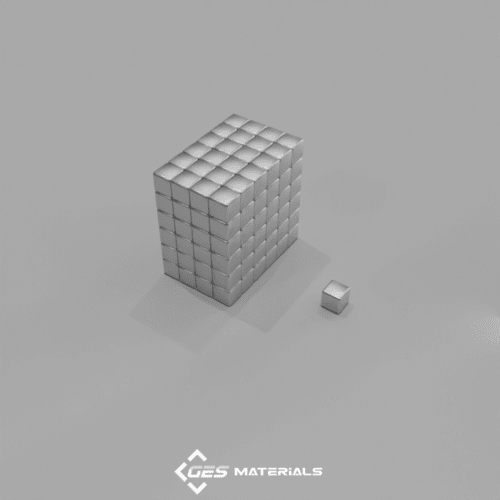

3/16 x 3/16 x 3/16 Inch Cube Magnet | B333 N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/16 x 3/16 x 3/16 Inch Cube Magnet | B333 N42 Magnets

Categories , ,

Additional information

Facebook
Twitter
LinkedIn

Description:

  • Dimensions: 3/16″ x 3/16″ x 3/16″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.0286 oz. (0.810 g)
  • Pull Force, Case 1: 2.29 lbs
  • Pull Force, Case 2: 2.72 lbs
  • Surface Field: 5754 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

Measuring 3/16″, these magnetic cubes are easy to handle and safe for casual use—they won’t pinch fingers and are ideal for creative stacking or gifting.
