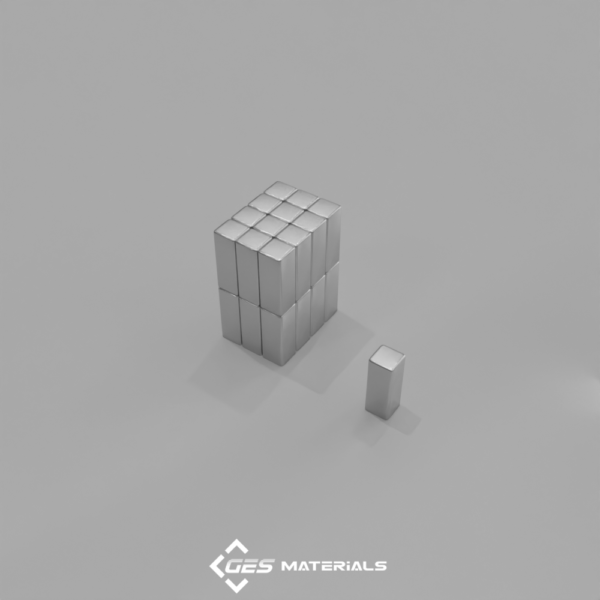

3/16 x 3/16 x 1/2 Inch Bar Magnet | B338 N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 3/16″ x 3/16″ x 1/2″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.034 oz. (0.96 g)
  • Pull Force, Case 1: 2.78 lbs
  • Pull Force, Case 2: 2.86 lbs
  • Surface Field: 6457 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These blocks are magnetized through the 1/2″ length, with poles on the small 3/16″ × 3/16″ ends—like a square-shaped cylinder. A unique size that’s useful for a wide range of applications and a great addition to our growing inventory.
