1/4 x 1/8 x 1/32 Inch Bar Magnet | B4201 N42 Magnets - GESmaterials

Globa Elements Solutions

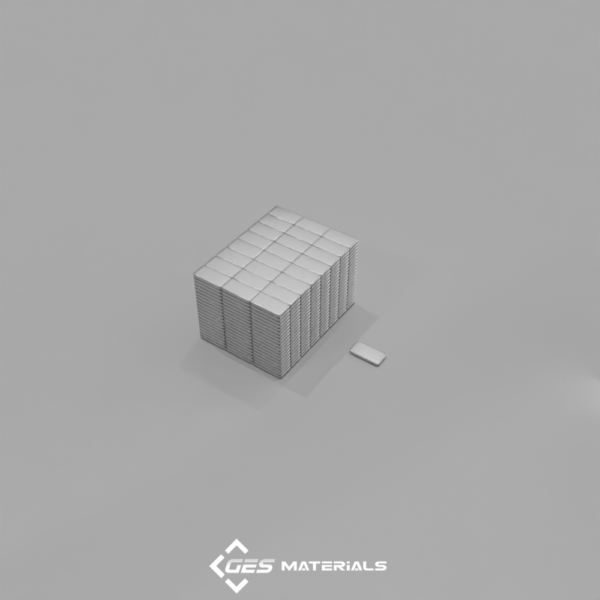

1/4 x 1/8 x 1/32 Inch Bar Magnet | B4201 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/4 x 1/8 x 1/32 Inch Bar Magnet | B4201 N42 Magnets

Categories Neodymium Block Magnets, Neodymium Magnets, Permanent Magnets

Additional information

Description:

Dimensions: 1/4″ x 1/8″ x 1/32″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.00423 oz. (0.120 g)
Pull Force, Case 1: 0.38 lbs
Pull Force, Case 2: 2.21 lbs
Surface Field: 2186 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

Small but mighty, these ultra-thin rectangular magnets are great for all kinds of projects. They’re strong, versatile, and budget-friendly.
