1/4 x 1/8 x 1/4 Inch Block Magnet | B424-N52 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 1/4″ x 1/8″ x 1/4″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.0339 oz. (0.96 g)
Pull Force, Case 1: 2.77 lbs
Pull Force, Case 2: 2.99 lbs
Surface Field: 6888 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

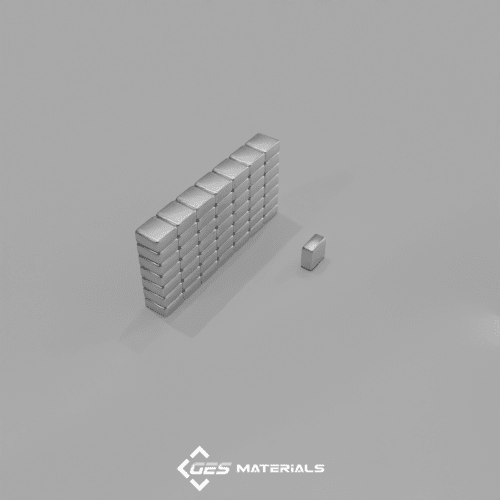

Our B424-N52 blocks match the size of our B442 blocks but feature a different magnetization design. These blocks are magnetized through the 1/4″ dimension, with the poles positioned on the 1/4″ x 1/8″ sides. This unique configuration allows them to attract each other side-to-side, as illustrated in the image below.
