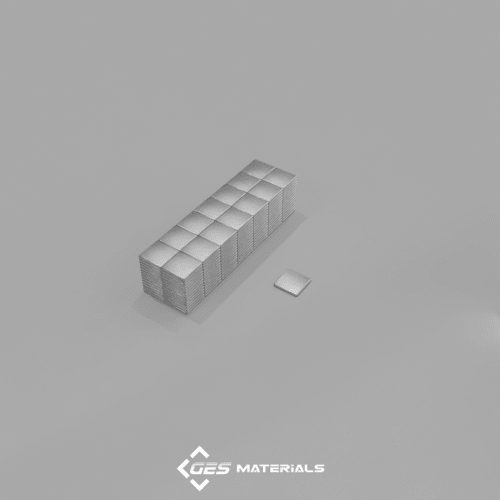

1/4 x 1/4 x 1/32 Inch Block Magnet | B4401 N42 Magnets

Categories Neodymium Block Magnets, Neodymium Magnets, Permanent Magnets

1/4 x 1/4 x 1/32 Inch Block Magnet | B4401 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 1/4″ x 1/4″ x 1/32″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.00847 oz. (0.240 g)
Pull Force, Case 1: 0.61 lbs
Pull Force, Case 2: 4.50 lbs
Surface Field: 1448 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The B4401 is an ultra-thin (just 1/32″) block magnet. It is useful for many projects where a very thin block is required.
