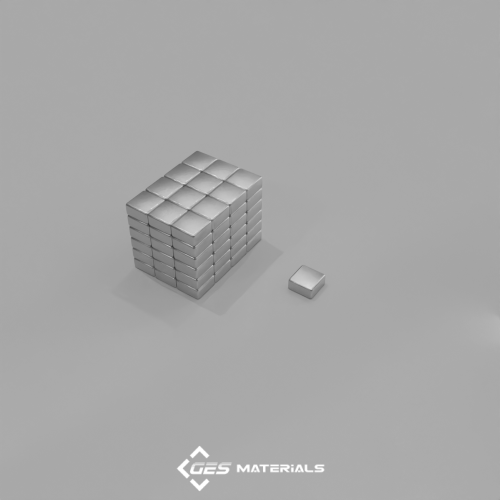

1/4 x 1/4 x 1/8 Inch Block Magnet | B442 N42 Magnets

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 1/4″ x 1/4″ x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.0339 oz. (0.960 g)
  • Pull Force, Case 1: 2.84 lbs
  • Pull Force, Case 2: 5.09 lbs
  • Surface Field: 4400 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

The B442 is another compact square block, designed to be used alongside our B441 and B444 cubes. This size is also available in grade N52 under the part number B442-N52.
