1/4 x 1/4 x 1/4 Inch Cube Magnet | B444-1 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/4 x 1/4 x 1/4 Inch Cube Magnet | B444-1 N42 Magnets

Additional information

Description:

Dimensions: 1/4″ x 1/4″ x 1/4″ (- 1/16″ hole)
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: NiCuNi (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.068 oz (1.92 g)
Pull Force, Case 1: 4.05 lbs
Pull Force, Case 2: 4.9 lbs
Surface Field: 5294 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

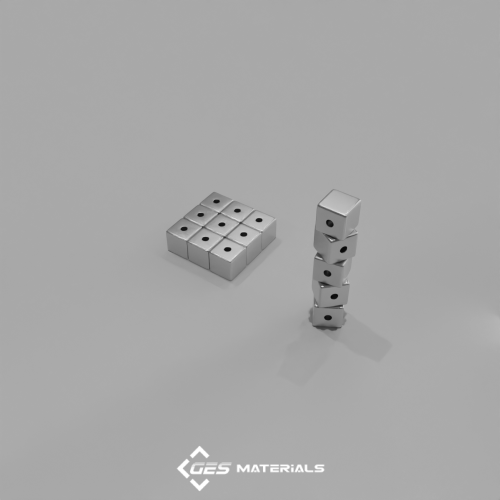

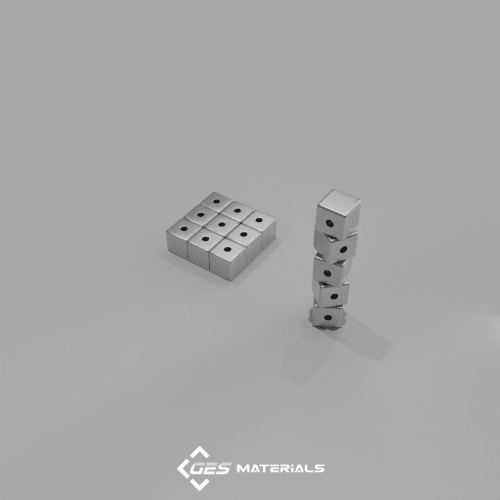

These versatile 1/4″ cubes feature a 1/16″ hole through the center, which is perpendicular to the magnetization direction. This design places the poles on two opposing sides, without the holes. They are perfect for suspending metal objects from a string tied to surfaces that a magnet wouldn’t normally stick to. These magnets can also be used to hang a string from a drop ceiling or steel beam, with the string easily knotted or looped through the cube to secure it. These small cubes offer countless applications.

This size is also available in grade N52 under part number B444-N52, in grade N42 with a Black Nickel plating as part number B444B, and in grade N42 with our standard Nickel plating as part number B444.
