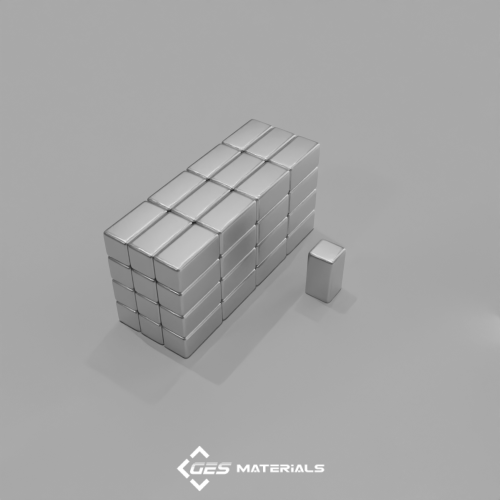

1/4 x 1/4 x 1/2 Inch Bar Magnet | B448 N52 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/4 x 1/4 x 1/2 Inch Bar Magnet | B448 N52 Magnets

Additional information

Description:

Dimensions: 1/4″ x 1/4″ x 1/2″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.136 oz. (3.84 g)
Pull Force, Case 1: 6.26 lbs
Pull Force, Case 2: 6.56 lbs
Surface Field: 7123 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

These blocks are magnetized along the 1/2″ length, with the poles located on the small 1/4″ x 1/4″ ends. They function like “square cylinder” magnets and are suitable for a variety of applications. Also available in grade N42 under part number B448.
