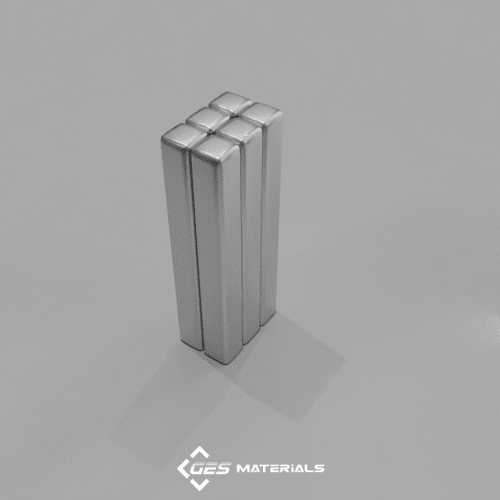

1/4 x 1/4 x 2 Inch Bar Magnet | B44Y0 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 1/4″ x 1/4″ x 2″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.542 oz. (15.4 g)
Pull Force, Case 1: 5.58 lbs
Pull Force, Case 2: 5.58 lbs
Surface Field: 6584 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These blocks are magnetized through the 2″ length, with the poles on the smaller 1/4″ x 1/4″ ends, making them easy to grip and hold onto. They’re perfect for use as a mini pick-up tool or for easily identifying ferrous and non-ferrous metals.
