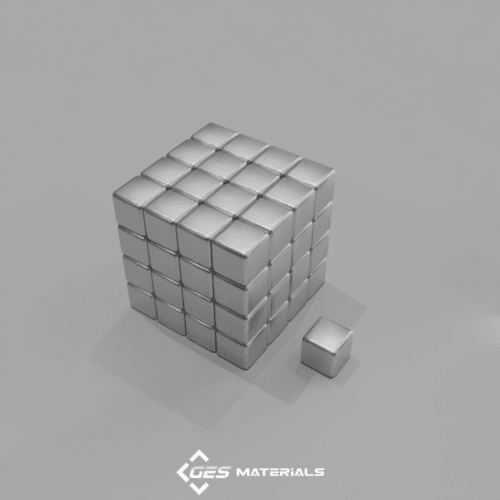

5/16 x 5/16 x 5/16 Inch Cube Magnet | B555 N42 Magnets

Categories Neodymium Block Magnets, Neodymium Magnets, Permanent Magnets

5/16 x 5/16 x 5/16 Inch Cube Magnet | B555 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 5/16″ x 5/16″ x 5/16″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.132 oz. (3.75 g)
Pull Force, Case 1: 6.70 lbs
Pull Force, Case 2: 8.71 lbs
Surface Field: 5754 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The B555 is a very popular cube shape in a 5/16″ size. Like all of our other cubes, they can be quite useful.
