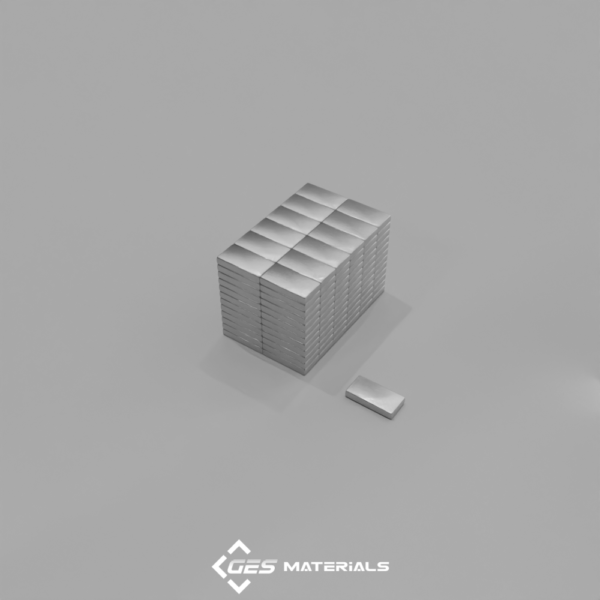

3/8 x 3/16 x 1/16 Inch Bar Magnet | B631-N52 Magnets

Categories , ,
3/8 x 3/16 x 1/16 Inch Bar Magnet | B631-N52 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 3/8″ x 3/16″ x 1/16″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N52
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.0191 oz. (0.540 g)
  • Pull Force, Case 1: 1.93 lbs
  • Pull Force, Case 2: 6.87 lbs
  • Surface Field: 3114 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 14,800 Gauss
  • BHmax: 52 MGOe

Applications:

These thin yet powerful blocks are ideal for a wide range of applications where a compact block magnet is required. They’re particularly effective as traction magnets for larger-scale slot cars.

This size is also available in grade N42 under part number B631.
