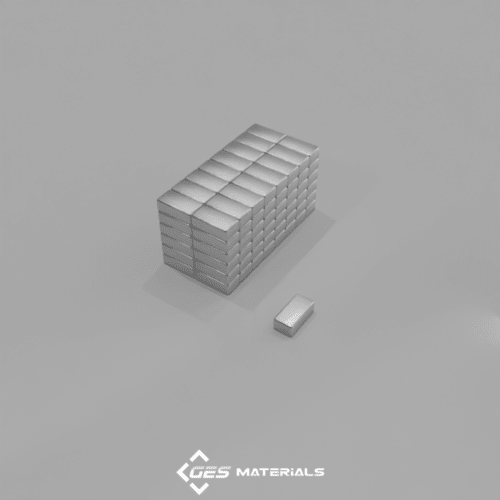

3/8 x 3/16 x 1/8 Inch Bar Magnet | B632 N42 Magnets

Categories , ,
3/8 x 3/16 x 1/8 Inch Bar Magnet | B632 N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions:  3/8″ x 3/16″ x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.04 oz. (1.08 g)
  • Pull Force, Case 1: 3.13 lbs
  • Pull Force, Case 2: 5.83 lbs
  • Surface Field: 4404 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These amazing little blocks are perfect for a variety of applications where a small block magnet is needed. They’re especially well-suited for light-duty projects such as crafts, models, and other creative uses.
