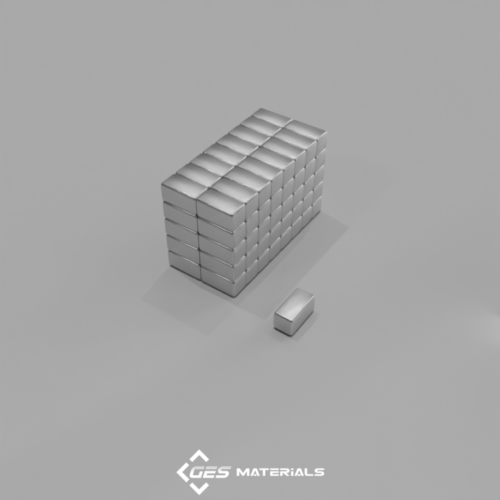

3/8 x 3/16 x 3/16 Inch Bar Magnet | B633 N42 Magnets

Categories , ,

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions:  3/8″ x 3/16″ x 3/16″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.057 oz. (1.62 g)
  • Pull Force, Case 1: 4.11 lbs
  • Pull Force, Case 2: 5.87 lbs
  • Surface Field: 5248 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These amazing little blocks can be used for many applications where a small block magnet is needed. Great for light-duty projects such as crafts and models.
