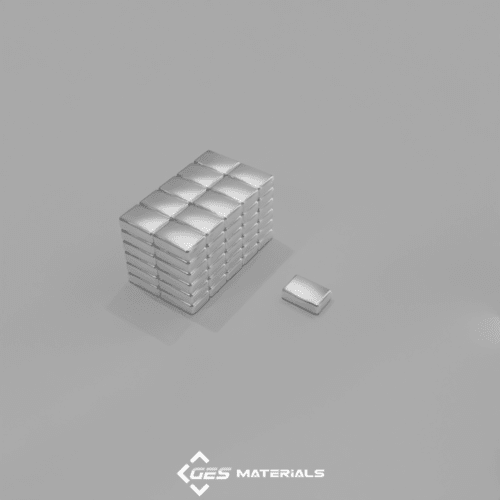

3/8 x 1/4 x 1/8 Inch Block Magnet | B642 N42 Magnets

Categories , ,
3/8 x 1/4 x 1/8 Inch Block Magnet | B642 N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 3/8″ x 1/4″ x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.051 oz. (1.44 g)
  • Pull Force, Case 1: 3.91 lbs
  • Pull Force, Case 2: 7.83 lbs
  • Surface Field: 3957 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These low-profile blocks are ideal for a wide range of applications where a small, thin magnet is needed. Perfect for art projects, crafts, experiments, and more—the possibilities are endless.
