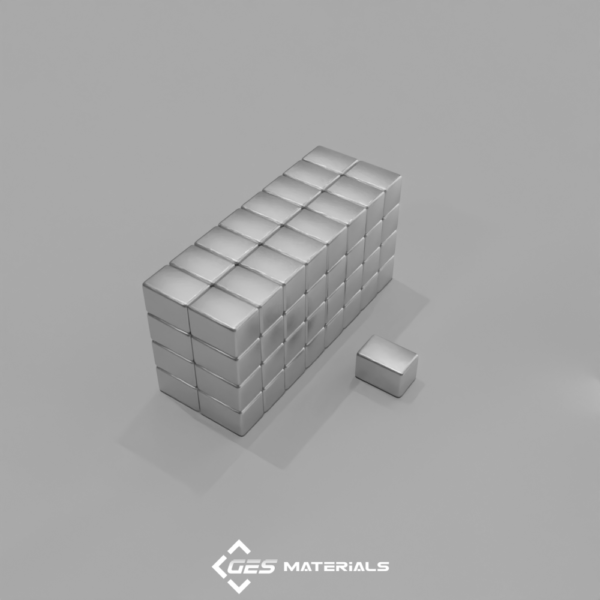

3/8 x 1/4 x 1/4 Inch Block Magnet | B644 N42 Magnets

Categories , ,
3/8 x 1/4 x 1/4 Inch Block Magnet | B644 N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 3/8″ x 1/4″ x 1/4″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.102 oz. (2.88 g)
  • Pull Force, Case 1: 6.03 lbs
  • Pull Force, Case 2: 7.86 lbs
  • Surface Field: 5459 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

The B644 is an excellent general-purpose magnet, offering a strong hold in a compact, easy-to-grip shape. It’s ideal for projects that require both strength and handling convenience.
