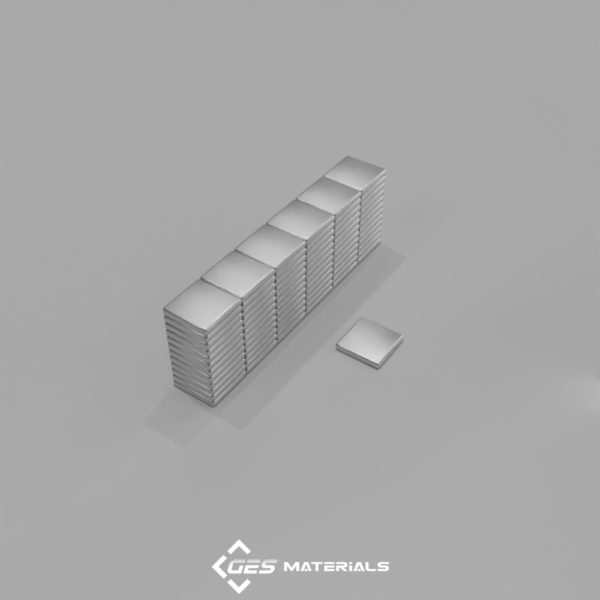

3/8 x 3/8 x 1/16 Inch Block Magnet | B661 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/8 x 3/8 x 1/16 Inch Block Magnet | B661 N42 Magnets

Categories Neodymium Block Magnets, Neodymium Magnets, Permanent Magnets

Additional information

Description:

Dimensions: 3/8″ x 3/8″ x 1/16″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.0381 oz. (1.08 g)
Pull Force, Case 1: 2.50 lbs
Pull Force, Case 2: 10.68 lbs
Surface Field: 1895 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These 3/8″ square blocks are just 1/16″ thick, making them both strong and compact. A handy choice for a variety of low-profile applications!
