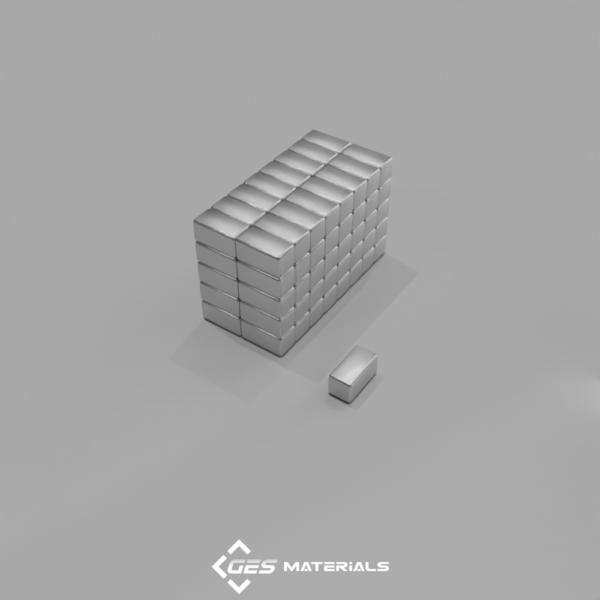

3/8 x 3/8 x 3/16 Inch Block Magnet | B663 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/8 x 3/8 x 3/16 Inch Block Magnet | B663 N42 Magnets

Additional information

Description:

Dimensions: 3/8″ x 3/8″ x 3/16″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.114 oz. (3.23 g)
Pull Force, Case 1: 7.09 lbs
Pull Force, Case 2: 11.80 lbs
Surface Field: 4400 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The B663 is a versatile, general-purpose magnet known for its flat shape and strong holding power. Its low-profile design makes it easy to handle and install, making it a popular choice for applications where a reliable grip is needed in a compact form.

Frequently used in crafts, displays, and DIY projects, the B663 provides an excellent balance of strength and convenience, ideal for situations where space is limited but performance can’t be compromised.
