3/8 x 3/8 x 3/8 Inch Cube Magnet | B666-03PE N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/8 x 3/8 x 3/8 Inch Cube Magnet | B666-03PE N42 Magnets

Additional information

Description:

Dimensions: 3/8″ x 3/8″ x 3/8″ (- 3/32″ hole) Hole perpendicular to magnetization direction
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.206 oz. (5.84 g)
Pull Force, Case 1: 9.44 lbs
Pull Force, Case 2: 10.68 lbs
Surface Field: 5294 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

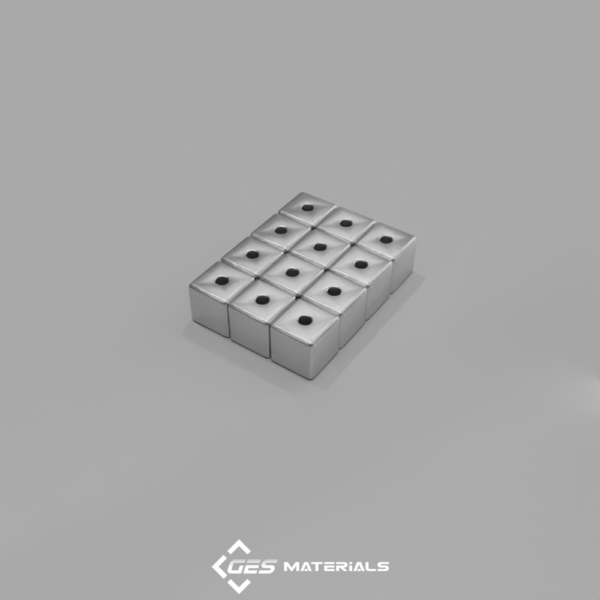

These handy 3/8″ Neodymium Cube Magnets feature a 3/32″ hole through the center, drilled perpendicular to the magnetization direction. This means the magnetic poles are located on the two faces without the hole, allowing for optimal magnetic contact while still accommodating a string or wire.

They’re perfect for suspending metal objects from non-magnetic surfaces using a string or cord. Whether you’re hanging signs from a drop ceiling, creating clever display systems, or designing DIY hanging solutions, these cubes offer a smart, secure, and incredibly strong option. Simply knot or loop the string through the cube and you’re ready to go. Endless possibilities!
