3/8 x 3/8 x 1/2 Inch Block Magnet | B668 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/8 x 3/8 x 1/2 Inch Block Magnet | B668 N42 Magnets

Additional information

Description:

Dimensions: 3/8″ x 3/8″ x 1/2″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.305 oz. (8.65 g)
Pull Force, Case 1: 10.85 lbs
Pull Force, Case 2: 11.91 lbs
Surface Field: 6081 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

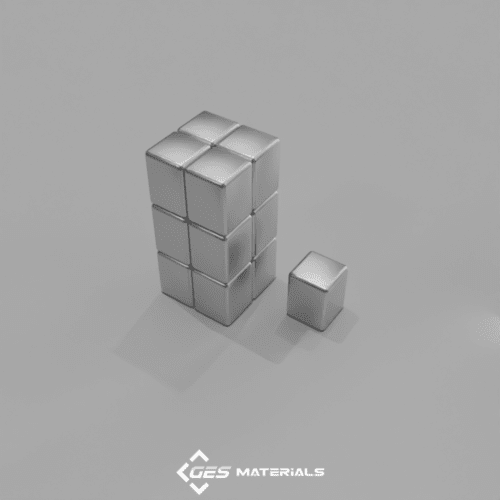

These Neodymium block magnets are magnetized through the 1/2″ length, meaning the magnetic poles are located on the smaller 3/8″ x 3/8″ ends. Shaped almost like a “square cylinder”, they offer a compact yet powerful form factor.

Their unique geometry and strong pull make them ideal for precision applications, including sensors, closures, assemblies, and other setups where a focused magnetic field at the ends is preferred. Versatile and easy to handle, these blocks are a favorite for both industrial and DIY projects.
