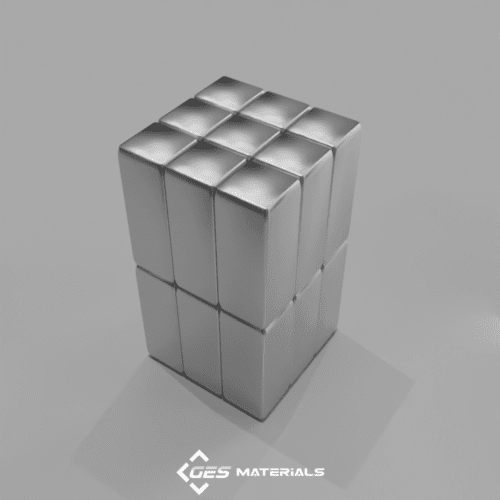

3/8 x 3/8 x 1 Inch Bar Magnet | B66X0 N42 Magnets

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 3/8″ x 3/8″ x 1″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.610 oz. (17.29 g)
  • Pull Force, Case 1: 11.99 lbs
  • Pull Force, Case 2: 11.99 lbs
  • Surface Field: 6457 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

These Neodymium magnets are magnetized through the 1″ length, placing the poles on the 3/8″ x 3/8″ ends. Their strong magnetic force makes them surprisingly powerful for their size, strong enough to pinch if not handled carefully.

Despite their strength, they’re still easy to grip and reposition, making them an excellent choice for use on bulletin boards, whiteboards, or refrigerators. Just one of these magnets can securely hold a stack of papers in place. A great balance of power and practicality!
