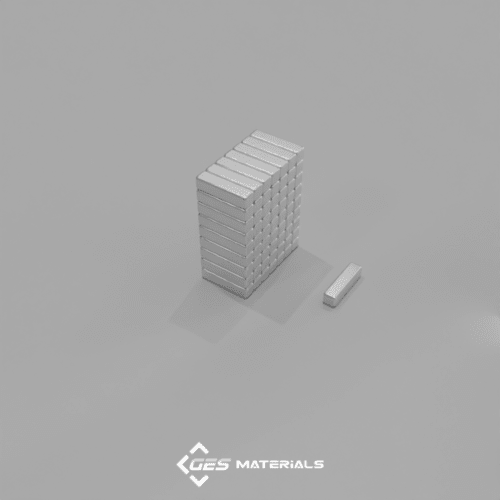

1/2 x 1/8 x 1/8 Inch Bar Magnet | B822 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/8 x 1/8 Inch Bar Magnet | B822 N42 Magnets

Categories Neodymium Block Magnets, Neodymium Magnets, Permanent Magnets

Additional information

Description:

Dimensions: 1/2″ x 1/8″ x 1/8″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.0339 oz. (0.960 g)
Pull Force, Case 1: 2.84 lbs
Pull Force, Case 2: 5.09 lbs
Surface Field: 4871 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These small, thin blocks are useful for applications ranging from slot cars to sensors. They are a great size!
