1/2 x 1/8 x 1 Inch Bar Magnet | B82X0 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/8 x 1 Inch Bar Magnet | B82X0 N42 Magnets

Additional information

Description:

Dimensions: 1/2″ x 1/8″ x 1″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.271 oz. (7.68 g)
Pull Force, Case 1: 5.41 lbs
Pull Force, Case 2: 5.41 lbs
Surface Field: 6536 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

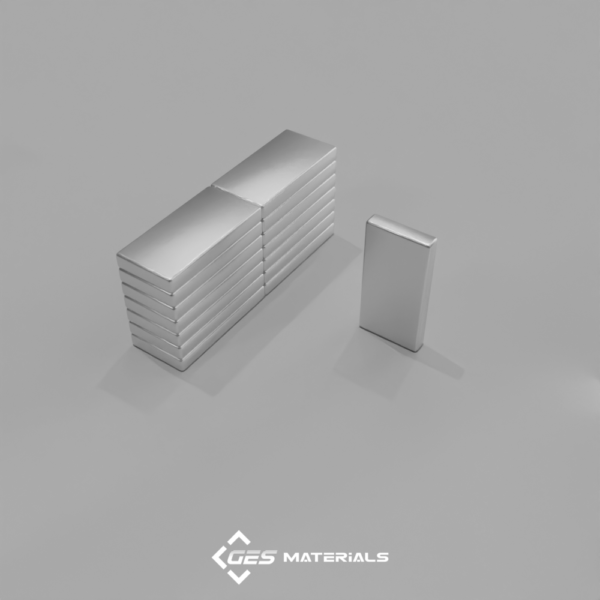

These blocks have the same dimensions as our popular BX082 blocks, but they are magnetized along the 1″ dimension. This means the poles are located on the small (1/2″ x 1/8″) ends of the block, causing them to attract “end-to-end,” as shown in the bottom picture.
