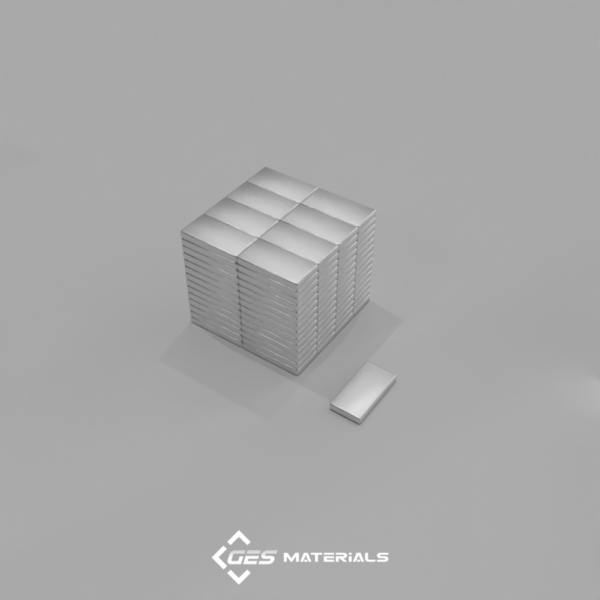

1/2 x 1/4 x 1/16 Inch 3M Adhesive Backed Block Craft Magnet

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/4 x 1/16 Inch 3M Adhesive Backed Block Craft Magnet | B841AD-P N42 Magnets

Additional information

Description:

Dimensions: 1/2″ x 1/4″ x 1/16″ thick with adhesive backing
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.0339 oz. (0.960 g)
Pull Force, Case 1: 2.31 lbs
Pull Force, Case 2: 9.63 lbs
Surface Field: 2186 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These magnets are similar to our popular B841 block magnet but come with a pre-applied 3M 467MP adhesive on one side for easy mounting. The adhesive backing includes a convenient peel tab for quick and hassle-free removal. Sold in matched pairs, one magnet has the adhesive on the north pole and the other on the south pole, allowing them to attract each other perfectly when mounted.

Magnets are priced and sold in 10-packs, with each pack containing 10 pairs (20 total magnets). For example, ordering a quantity of 1 gives you 10 pairs (20 magnets), while a quantity of 2 gives you 20 pairs (40 magnets). Ideal for crafts, displays, packaging, and many other applications.
