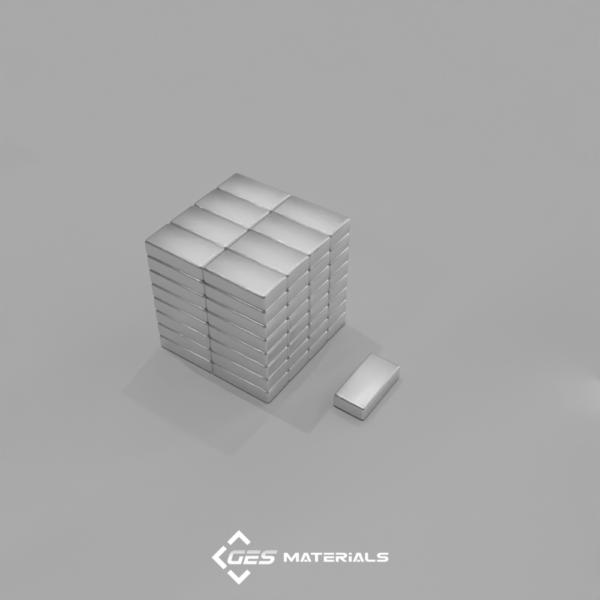

1/2 x 1/4 x 1/8 Inch Bar Magnet | B842 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/4 x 1/8 Inch Bar Magnet | B842 N42 Magnets

Additional information

Description:

Dimensions: 1/2″ x 1/4″ x 1/8″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.0678 oz. (1.92 g)
Pull Force, Case 1: 4.80 lbs
Pull Force, Case 2: 10.42 lbs
Surface Field: 3723 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These mini rectangular magnets are incredibly handy and versatile. Perfect for hanging papers, posters, or just about anything else you can imagine, they offer a strong hold in a compact size — great for use at home, in the office, or in the workshop.

This size is also available in the stronger N52 grade as part number B842-N52.
