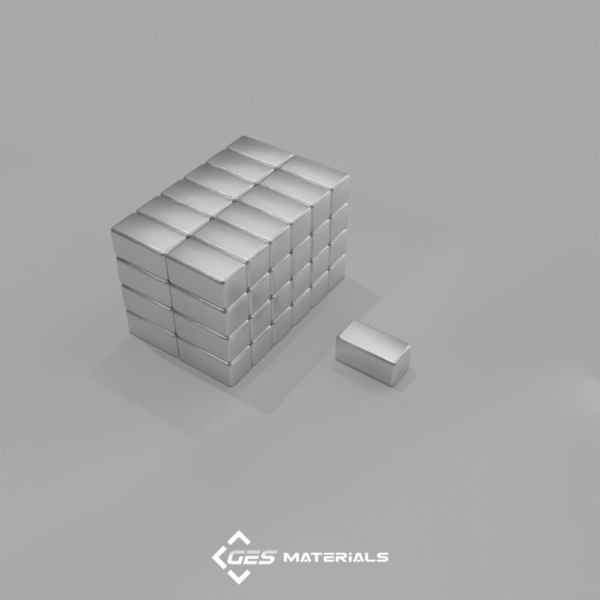

1/2 x 1/4 x 1/4 Inch Bar Magnet | B844 N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/4 x 1/4 Inch Bar Magnet | B844 N42 Magnets

Additional information

Description:

Dimensions: 1/2″ x 1/4″ x 1/4″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.135 oz. (3.84 g)
Pull Force, Case 1: 7.63 lbs
Pull Force, Case 2: 10.46 lbs
Surface Field: 5248 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These little block magnets are incredibly handy—not too big, not too small, and just the right size for everyday use. They’re perfect for hanging papers, posters, or just about anything else you can think of. Compact yet powerful, they provide reliable magnetic strength for both home and office activities.
