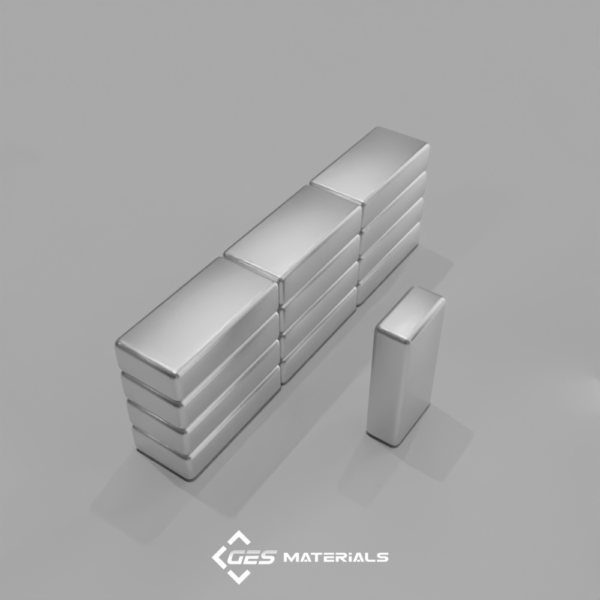

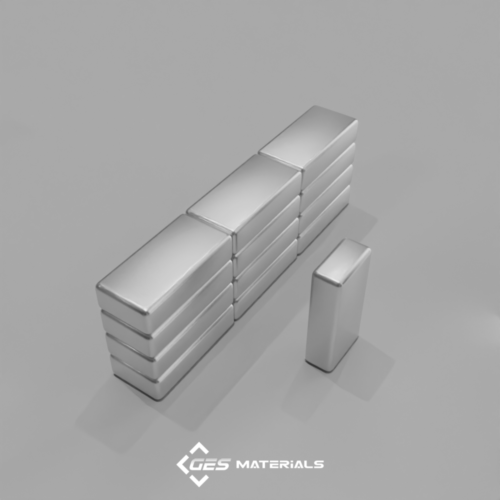

1/2 x 1/4 x 1 Inch Bar Magnet | B84X0 N52 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1/2 x 1/4 x 1 Inch Bar Magnet | B84X0 N52 Magnets

Additional information

Description:

Dimensions: 1/2″ x 1/4″ x 1″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.54 oz. (15.4 g)
Pull Force, Case 1: 13.05 lbs
Pull Force, Case 2: 13.05 lbs
Surface Field: 7258 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

The B84X0-N52 is commonly known as a “bar” magnet, magnetized through the 1″ length. Its poles are located on the smallest ends, giving it the classic behavior of traditional Alnico bar magnets often used in school demonstrations. This powerful N52 grade offers enhanced magnetic strength for more demanding applications. Also available in grade N42 as part number B84X0.
