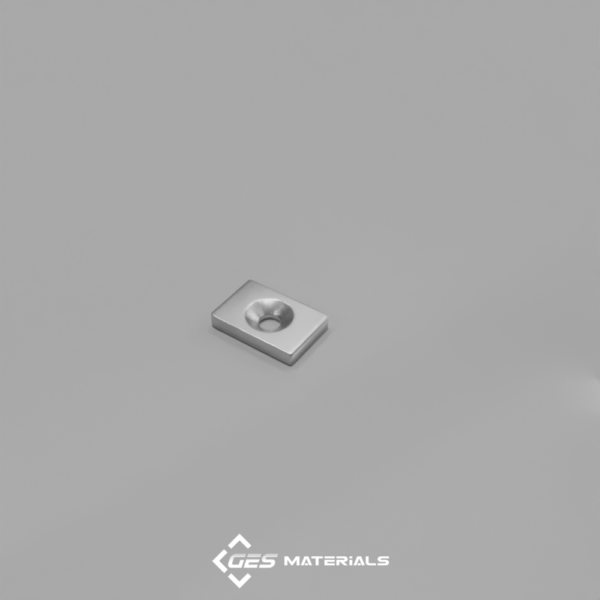

3/4 x 1/2 x 1/8 Inch Countersunk Block Magnet (#6 screw) | BC82CS-S-N42 Magnets

Additional information

Description:

Dimensions: 3/4″ x 1/2″ x 1/8″ thick with countersunk hole for #6 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.184 oz. (5.23 g)
Pull Force, Case 1: 7.36 lbs
Pull Force, Case 2: 25.61 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

We offer a 3/4″ x 1/2″ in 1/8″ thick, rectangular block magnet with a hole for a #6 flathead screw to allow for easy fastening. The BC82CS-S is magnetized with the south pole on the countersunk side.

These countersunk block magnets can be used for a variety of applications, including door closures and tool hangers.
