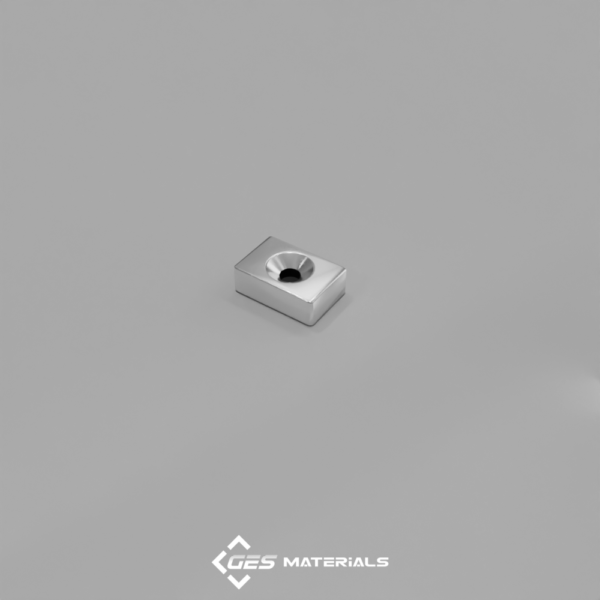

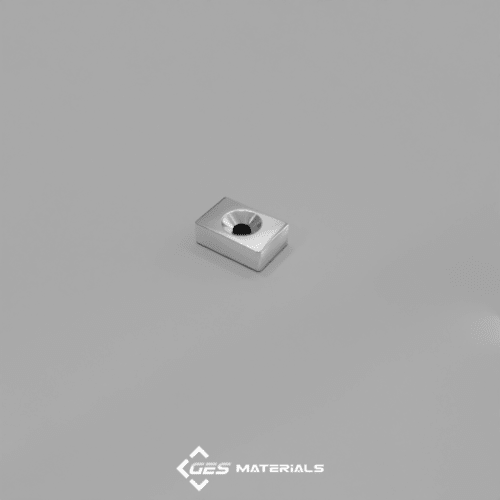

3/4 x 1/2 x 1/4 Countersunk Block Magnet (#6 screw) | BC84DCS-N52 Magnets

Additional information

Description:

Dimensions: 3/4″ x 1/2″ x 1/4″ thick w/ hole to accept a #6 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.369 oz. (10.5 g)
Pull Force, Case 1: 16.81 lbs
Pull Force, Case 2: 30.94 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

The BC84DCS, now in grade N52! This rectangular block is countersunk on both sides, making it reversible. The double countersunk hole allows for fastening to surfaces where magnets just won’t stick. Good for woodworking, art projects, manufacturing, and many other custom applications.
