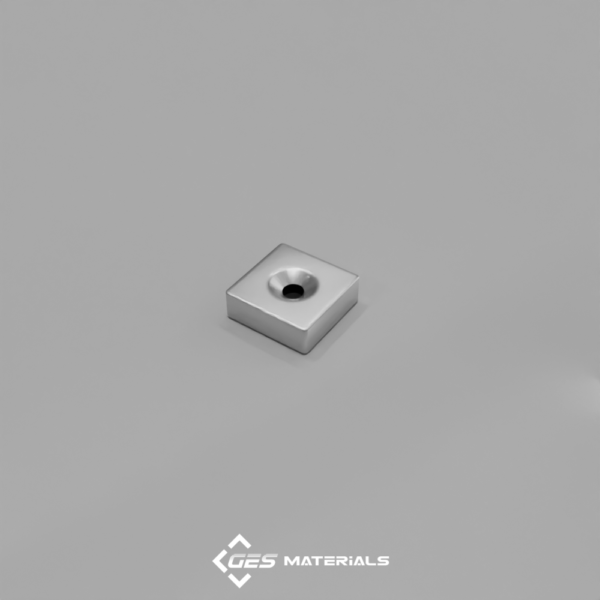

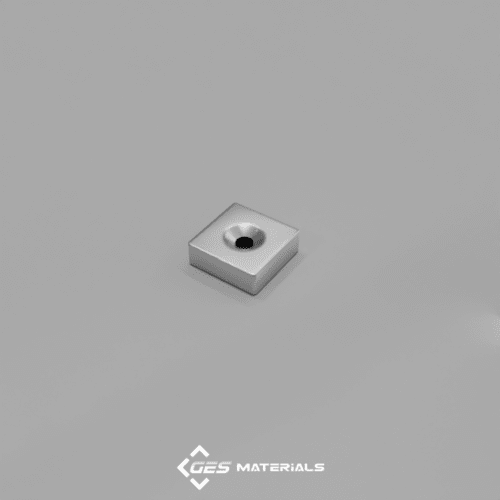

3/4 x 3/4 x 1/4 Inch Countersunk Block Magnet (#6 screw)

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

3/4 x 3/4 x 1/4 Inch Countersunk Block Magnet (#6 screw) | BCC4DCS-N42 magnets

Additional information

Description:

Dimensions: 3/4″ x 3/4″ x 1/4″ thick w/ countersunk hole to accept #6 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.572 oz. (16.21 g)
Pull Force, Case 1: 19.26 lbs
Pull Force, Case 2: 39.93 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The BCC4DCS is a powerful block magnet with the added benefit of having two countersunk holes—one on each side. This allows the magnet to be attached to surfaces such as wood, aluminum, and stainless steel. Additionally, it is reversible, enabling it to be oriented either north-side-up or south-side-up with the same results.
