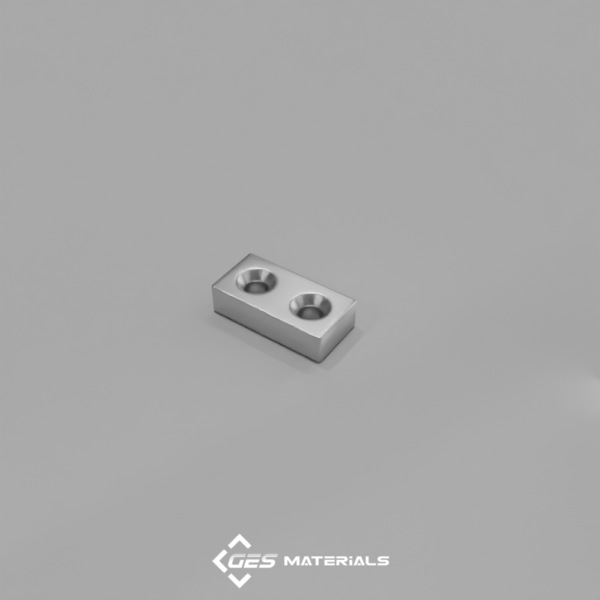

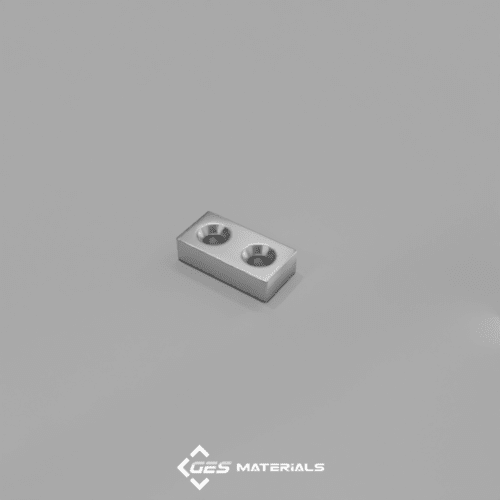

1 x 1/4 x 1/2 Inch Countersunk Block Magnet (#6 screw) | BX048CS-N42 Magnets

Additional information

Description:

Dimensions: 1″ x 1/4″ x 1/2″ thick w/ 2x holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.48 oz. (13.6 g)
Pull Force, Case 1: 17.17 lbs
Pull Force, Case 2: 21.58 lbs
Surface Field: 5521 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The BX048CS is magnetized in the 1/2″ direction. In other words, the north and south poles are located on the long, 1″ x 1/4″ faces. Unlike most of our Countersunk Magnets, the holes are not parallel to the magnetization direction. The hole is “through the side.” The north and south poles of this magnet are not on the faces with the holes.
