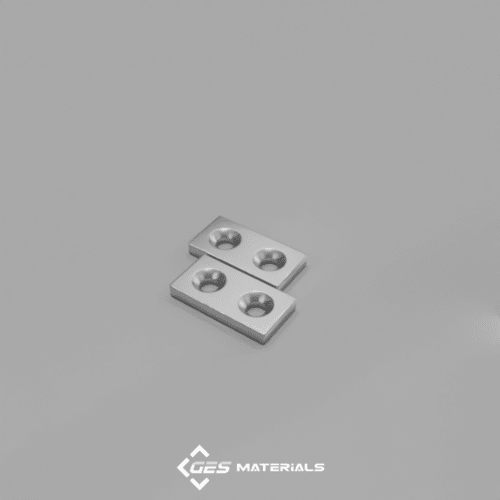

1 x 1/2 x 1/8 Inch Countersunk Block Magnet | BX082CS-N-N42 Magnets

Categories , , ,
1 x 1/2 x 1/8 Inch Countersunk Block Magnet | BX082CS-N-N42 Magnets
INQUIRY

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Reddit
X
LinkedIn
WhatsApp

Description:

  • Dimensions: 1″ x 1/2″ x 1/8″ thick
  • Tolerances: ±0.004″ x ±0.004″ x ±0.004″
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Thru Thickness
  • Weight: 0.233 oz. (6.61 g)
  • Pull Force, Case 1: 9.19 lbs
  • Pull Force, Case 2: 32.45 lbs
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

Applications:

This popular 1″ x 1/2″ x 1/8″ countersunk block magnet features two holes sized for #6 flat-head screws, making it easy to fasten securely in place. The BX082CS-N is magnetized with the north pole on the countersink side.

These versatile magnets are well-suited for many applications, including door closures, tool hangers, cabinetry, signage, and other mounting solutions where a strong, flush magnetic hold is needed.
