1 x 1/2 x 1/8 Inch Countersunk Block Magnet (1 Pair) | BX082CS-P-N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 x 1/2 x 1/8 Inch Countersunk Block Magnet (1 Pair) | BX082CS-P-N42 Magnets

Additional information

Description:

Dimensions: 1″ x 1/2″ x 1/8″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.233 oz. (6.61 g)
Pull Force, Case 1: 9.19 lbs
Pull Force, Case 2: 32.45 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

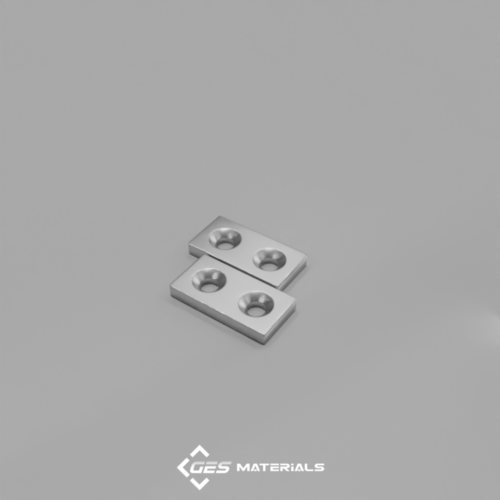

We offer this popular size magnet pair measuring 1″ x 1/2″ with a 1/8″ thickness, each featuring countersunk holes for two #6 flathead screws, making installation simple and secure. Sold as a matched pair under part number BX082CS-P, one magnet has the north pole on the countersunk side, while the other has the south pole on the same side, ensuring they attract each other when mounted.

These countersunk block magnets are ideal for a variety of uses, such as cabinet latches, door closures, or tool mounting solutions.
