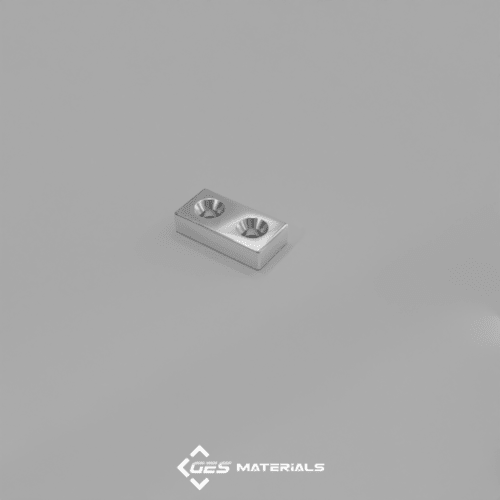

1 x 1/2 x 1/4 Inch Countersunk Block Magnet (#6 screw) | BX084DCS-N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 x 1/2 x 1/4 Inch Countersunk Block Magnet (#6 screw) | BX084DCS-N42 Magnets

Additional information

Description:

Dimensions: 1″ x 1/2″ x 1/4″ thick w/ holes to accept a #6 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.521 oz. (14.8 g)
Pull Force, Case 1: 18.2 lbs
Pull Force, Case 2: 35.83 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The BX084DCS is a standout in our unique line of double countersunk block magnets. This rectangular magnet features countersunk holes on both sides, making it fully reversible and ideal for applications where traditional magnets won’t adhere.

Perfect for woodworking, art projects, displays, manufacturing, and other custom setups, the double countersinks allow for secure fastening with flat-head screws, providing a strong and versatile magnetic mounting solution.
