1 x 1/2 x 1/2 Inch Countersunk Block Magnet (#6 screw) | BX088DCS N42 Magnets

Additional information

Description:

Dimensions: 1″ x 1/2″ x 1/2″ thick w/ countersunk holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.96 oz. (27.19 g)
Pull Force, Case 1: 26.74 lbs
Pull Force, Case 2: 34.89 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

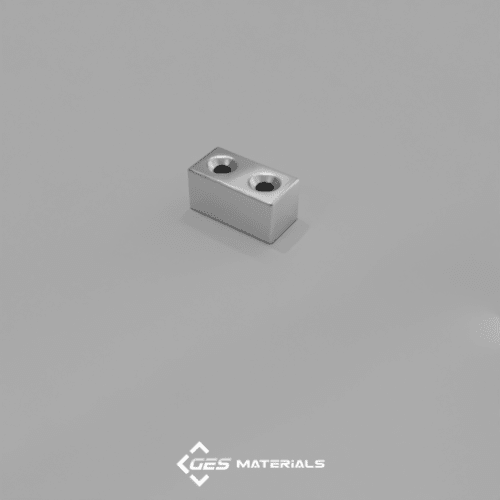

The BX088DCS is a powerful block magnet featuring a unique design with two double countersunk holes, allowing for reversible mounting. With countersinks on both sides, this magnet can be securely fastened to surfaces where magnets typically won’t hold on their own.

Its strong magnetic force and versatile mounting capability make it ideal for woodworking, construction, manufacturing, and a wide variety of custom applications where strength and flexibility are key.

Also available in grade N52 without countersunk holes as part number BX088-N52.
