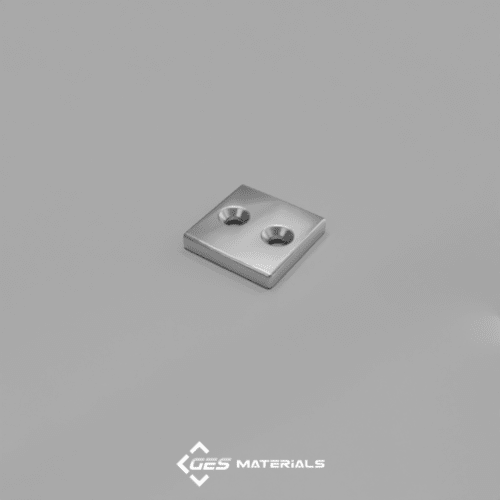

1 x 1 x 3/16 Inch Countersunk Block Magnet (#6 screw) | BX0X03DCS N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 x 1 x 3/16 Inch Countersunk Block Magnet (#6 screw) | BX0X03DCS N42 Magnets

Additional information

Description:

Dimensions: 1″ x 1″ x 3/16″ thick w/ countersunk holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.750 oz. (21.25g)
Pull Force, Case 1: 22.95 lbs
Pull Force, Case 2: 67.65 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The BX0X03DCS blocks are both incredibly powerful and highly versatile. Featuring double countersunk holes on both sides, these magnets can be securely fastened to surfaces where standard magnets simply won’t work—perfect for demanding, heavy-duty applications.

Thanks to their strong magnetic pull, they’re well-suited for projects requiring reliable, high-strength holding. However, due to their strength, care should be taken during handling to avoid pinching or chipping.

This size is also available without countersunk holes as part number BX0X03.
