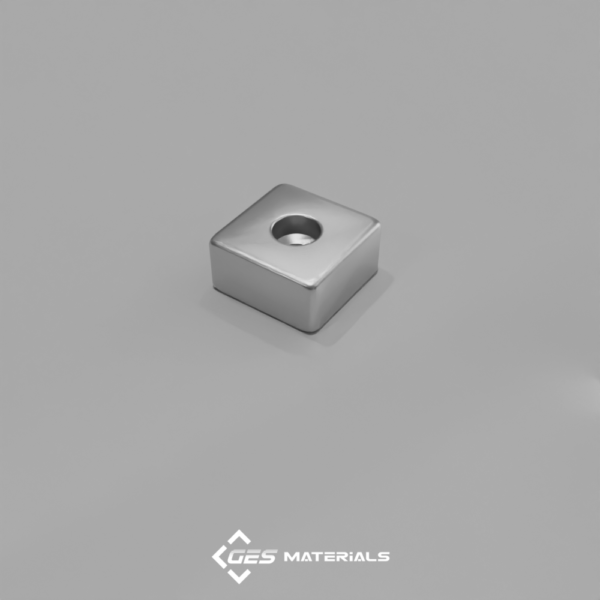

1x1x1/2 Inch Counterbored Block Magnet (#10 screw) | BX0X08DCB N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

Dimensions: 1″ x 1″ x 1/2″ thick w/ hole to accept a #10 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 1.98 oz. (56.13 g)
Pull Force, Case 1: 48.45 lbs
Pull Force, Case 2: 66.25 lbs
Surface Field: 3916 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

It’s a block! It’s a ring! It’s the BX0X08DCB — a uniquely designed, heavy-duty magnet featuring double counterbores for use with #10 screws. With counterbores on both sides, this magnet is reversible, allowing for flexible and secure mounting in applications where magnets normally can’t be used.

Thanks to its powerful magnetic force and durable construction, it’s perfect for a wide range of uses where strong attraction or repulsion is needed — ideal for industrial setups, custom builds, fixtures, and more. A rugged and reliable solution when strength matters most.
