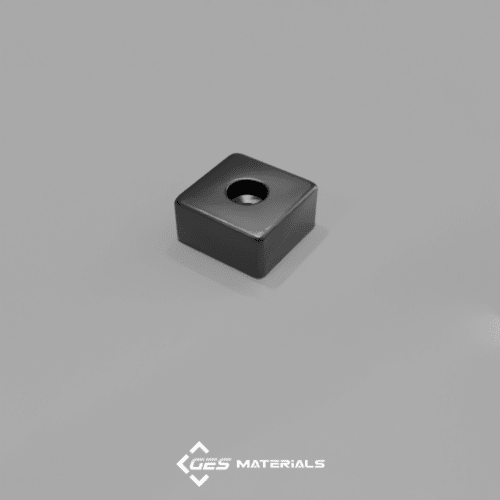

1 x 1 x 1/2 Inch Counterbored Block Magnet (#8 screw) | BX0X08DCSPC-BLK N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 x 1 x 1/2 Inch Counterbored Block Magnet (#8 screw) | BX0X08DCSPC-BLK N42 Magnets

Additional information

Description:

Dimensions: 1″ x 1″ x 1/2″ thick w/ hole to accept #8 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Black Plastic
Magnetization Direction: Thru Thickness
Weight: 1.75 oz (49.5 g)
Pull Force, Case 1: 27.3 lbs
Pull Force, Case 2: 45.9 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These impressive block magnets are encased in a durable black plastic coating, making them not only waterproof but also extremely impact-resistant. Unlike standard magnets, they can be repeatedly slammed together without chipping or cracking — built to withstand tough conditions.

Designed with countersunk holes on both sides, they’re incredibly versatile and easy to mount. Ideal for aquariums, marine environments, construction sites, outdoor projects, and more — wherever strength and durability are essential.

Super strong. Super tough. Built to last.
