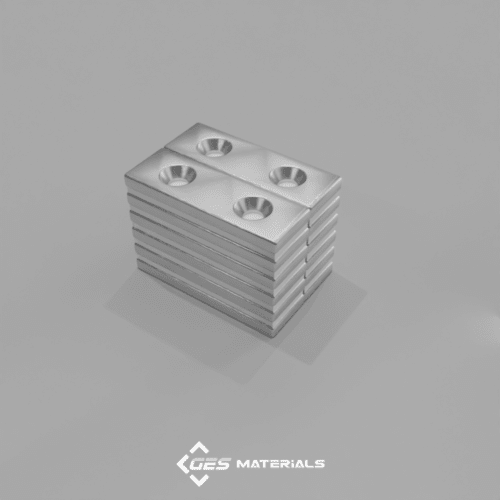

1 1/2 x 1/2 x 1/8 Inch Countersunk Block Magnet | BX882CS-S N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 1/2 x 1/2 x 1/8 Inch Countersunk Block Magnet | BX882CS-S N42 Magnets

Additional information

Description:

Dimensions: 1 1/2″ x 1/2″ x 1/8″ thick w/ holes to accept a #6 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.346 oz. (9.81 g)
Pull Force, Case 1: 11.03 lbs
Pull Force, Case 2: 49.16 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

Here we offer the popular size of 1½” x ½” x ⅛” thick with holes for two #6 flathead screws, allowing for quick and secure fastening. The BX882CS-S is magnetized with the south pole on the countersink side, making it ideal for use with matching north-pole magnets or steel surfaces.

These countersunk block magnets are versatile and strong, perfect for door closures, tool hangers, cabinetry, signage, fixtures, and more.

This size is also available without countersunk holes in:

Grade N42: Part number BX882
Grade N52: Part number BX882-N52
