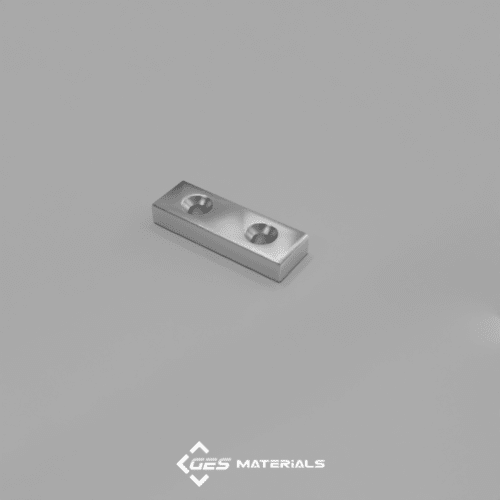

1 1/2 x 1/2 x 1/4 Inch Countersunk Block Magnet (#6 screw)

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 1/2 x 1/2 x 1/4 Inch Countersunk Block Magnet (#6 screw) | BX884DCS N42 Magnets

Additional information

Description:

Dimensions: 1 1/2″ x 1/2″ x 1/4″ thick w/ holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.703 oz. (19.92 g)
Pull Force, Case 1: 23.99 lbs
Pull Force, Case 2: 51.57 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The BX884DCS is a 1.5-inch-long neodymium magnet designed for maximum versatility. Featuring two double countersunk holes—one on each side—this powerful block magnet is reversible and perfect for applications where traditional magnets simply wouldn’t work. It’s ideal for woodworking, mounting, fixtures, custom builds, and any project requiring a strong hold with screw-fastening options.

This size is also available without countersunk holes as part number BX884.
