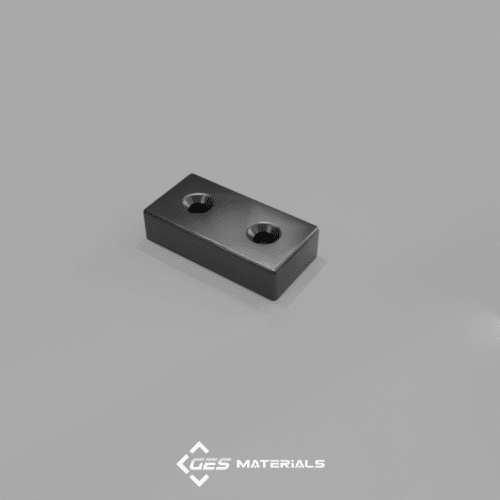

1 1/2 x 3/4 x 3/8 Inch Plastic Coated Countersunk Block Magnet (#6 screw) | BX8C6DCSPC-BLK N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

1 1/2 x 3/4 x 3/8 Inch Plastic Coated Countersunk Block Magnet (#6 screw) | BX8C6DCSPC-BLK N42 Magnets

Additional information

Description:

Dimensions: 1 1/2″ x 3/4″ x 3/8″ thick w/ holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Black Plastic
Magnetization Direction: Thru Thickness
Weight: 1.42 oz (40.16 g)
Pull Force, Case 1: 26.34 lbs
Pull Force, Case 2: 48.95 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

These incredible block magnets are coated in a tough black plastic, making them waterproof and highly impact-resistant. Unlike standard neodymium magnets, they can be slammed together repeatedly without the risk of chipping or cracking.

Designed with two countersunk holes on each side, they offer maximum versatility for mounting with screws in virtually any orientation. Whether you’re working in aquariums, marine environments, outdoor projects, construction sites, or demanding industrial settings, these magnets are built to last.

Super strong. Super tough. Built for the harshest conditions.
