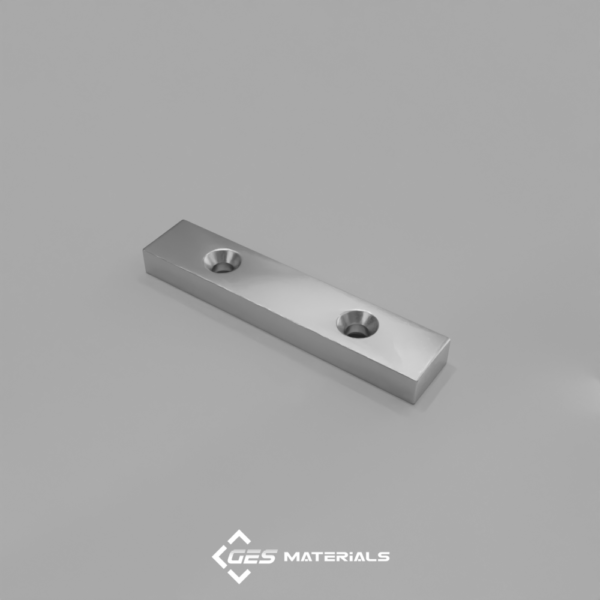

2 x 1/2 x 1/4 Inch Countersunk Block Magnet (#6 screw) | BY084DCS-N42 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

2 x 1/2 x 1/4 Inch Countersunk Block Magnet (#6 screw) | BY084DCS-N42 Magnets

Additional information

Description:

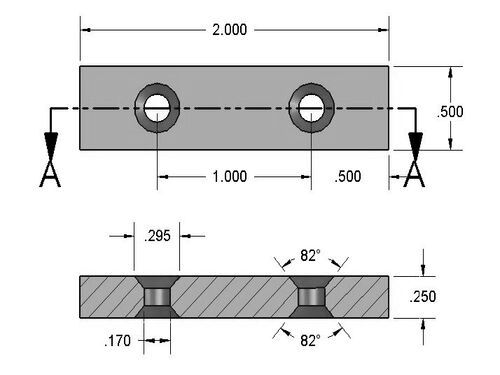

Dimensions: 2″ x 1/2″ x 1/4″ thick w/ holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.974 oz. (27.60 g)
Pull Force, Case 1: 27.95 lbs
Pull Force, Case 2: 68.30 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Applications:

The BY084DCS is a 2-inch-long neodymium block magnet designed for strength, versatility, and secure mounting. With double countersunk holes on both sides, this magnet can be fastened easily to a variety of surfaces, making it ideal for woodworking, construction, displays, fixtures, and many other custom applications.

Whether you’re building, crafting, or solving a tough mounting challenge, the BY084DCS delivers the holding power you need with the flexibility you want.

Also available without countersunk holes as part number BY084.
