2 x 1/2 x 1/4 Inch Countersunk Block Magnet (#6 screw) | BY084DCS-N52 Magnets

For customized services, please get in touch with us. We will provide pricing and availability within 24 hours.

Additional information

Description:

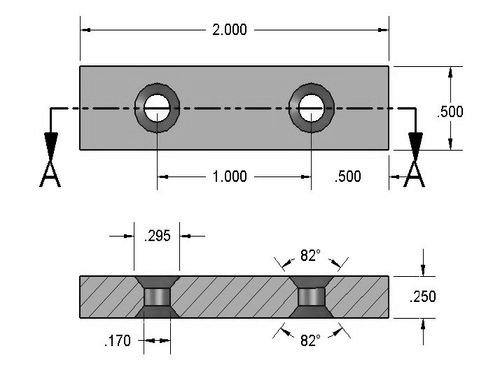

Dimensions: 2″ x 1/2″ x 1/4″ thick w/ holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.974 oz. (27.60 g)
Pull Force, Case 1: 34.44 lbs
Pull Force, Case 2: 84.56 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Applications:

The BY084DCS-N52 is a powerful, 2-inch-long neodymium magnet designed for maximum versatility and strength. Featuring double countersunk holes on both sides, this magnet can be securely mounted in applications where traditional magnets simply won’t work.

Its grade N52 composition offers exceptional holding power, making it ideal for woodworking, manufacturing, displays, custom fixtures, and more.

Also available in:

Grade N42: BY084DCS
Without countersunk holes: BY084 (N42) and BY084-N52 (N52)
Unmatched strength. Smart design. Endless possibilities.
